Normally Black LQ231U1LW01 470.4×352.8 mm Active Area 23.1 inch SHARP

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

Normally Black LQ231U1LW01 470.4×352.8 mm Active Area 23.1 inch SHARP

Brand Name : SHARP

Model Number : LQ231U1LW01

Certification : iso9001

Place of Origin : KOREA

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500PCS/DAY

Delivery Time : 1-3WORK DAY

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 23.1 inch

Resolution : 1600(RGB)×1200 , UXGA

Display Mode : MVA, Normally Black, Transmissive

Contact Now

Normally Black LQ231U1LW01 470.4×352.8 mm Active Area 23.1 inch SHARP

LQ231U1LW01 Detail

Panel Size : 23.1 inch
Dot Resolution : 1600(RGB)×1200 (UXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 86 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.098×0.294 mm (H×V)
Pixel Pitch : 0.294×0.294 mm (H×V)
Weight : 5.50Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 470.4×352.8 mm (H×V)
Bezel Area : 476.6×359.0 mm (H×V)
Outline Dimension : 530×432.8 mm (H×V)
Outline Depth : 32.5 (Typ.) mm
Holes & Brackets : Face mounting holes (4-Ф4.5)
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : MVA, Normally Black, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 20/10 (Typ.)(Tr/Td); 15 (Typ.)(G to G)
Viewing Angle : 85/85/85/85 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 Points)
Sunlight Readable : N

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

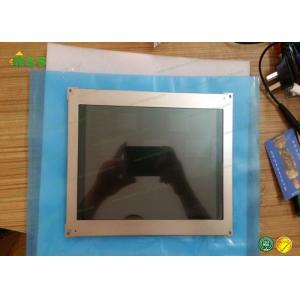

LQ231U1LW01 Picture
